A few more lamp irons…

Onward with part II, a step by step of how I made the next lot. In this instance I needed 3 L shaped lamp irons as opposed to the slightly off-centre T shape of the earlier efforts.

It may be a bit of a photo overload as I probably took more photos than needed to get across the methods used.

First I cut of the insulated section of another plug pin.

L shaped Lamp Irons – making a scratch pass to set the cutting height.

I fastened it in the milling vice supported on parallels and lowered the quill until it just touched the work piece and rotated it by hand to establish a base height for cutting.

Then I set the dial on the fine feed to zero

L shaped Lamp Irons – setting the fine feed to Zero

Here we are ready for the first cut, you can see the parallel sticking out the end of the vice. To get the right height I had to stack two different sizes of parallels on top of each other. – in this instance I used a 5 x13mm on top of a 6 x 24mm. I have a set of 20 pairs of different heights and thicknesses. I have also cut a couple of cheapo 6″ steel rules in half for if I need really thin parallels (the thinnest in the set is 2mm thick)

L shaped Lamp Irons work piece set up on parallels ready to mill

Next we start to take the first cuts to form the back of the L using a 5mm 4 flute end mill.

L shaped Lamp Irons making the first cuts

Once I got to the lowest depth of cut that the top of the vice would allow I moved the cutter back to take a small cut to create the underside of the lamp iron. I only took a couple of passes just so that I had enough of a ridge that I would be able to see the slitting saw passing through it in a later operation

L shaped Lamp Irons staring the horizontal leg of the ‘L’

Then I used a small brass hand vice as a vice stop to allow me to turn the part over to do the same on the other side.

L shaped Lamp Irons Using a small hand vice as a vice stop.

Next I shifted the part so that it was fixed in the end of the vice with the upper leg of the L stick out of the edge of the vice horizontally and made the first cut with the slitting saw.

This is at the end of the first cut. The slitting saw is the 4″x 0.5mm 100 tooth blade that I used for the first ones.

L shaped Lamp Irons first slitting cut done

Once both the slits were cut I put the part back in to the top of the vice to cut through the horizontal leg of the L with a 3mm four flute end mill

L shaped Lamp Irons Starting the final cut Having turn the part over.

I had inserted a small brass shim that gave me another 0.7mm of clearance above the vice jaws which allowed me to mill down until there was only a sliver of brass holding the parts in place

L shaped Lamp Irons Making the final cuts with the mill

Finally I was able to just touch the lamp irons with a scalpel blade to lift and cut them free.

L shaped Lamp Irons the final cut finished

All that remained was a bit of hand filing to finish them off ready for fitting

Finished L shaped Lamp Irons

Milled Lamp Irons MKII

On the back of this morning’s discussions I had another go and used the Slitting saw to separate them. With much more precise results.

Milled Lamp Irons MKII – Milled ready for slitting

This is the basic shape milled from another plug

Milled Lamp Irons MKII – straight off the mill

Then cut with a 0.5mm slitting saw. My first go with the slitting saw that I got for my birthday a couple of months ago. Very nerve wracking!!!

Milled Lamp Irons MKII – After a bit of cleaning up with a file

After a brief clean up with a diamond file.

Millled lamp Irons MKII- after cutting of the main pin

Finally cut off from the main pin. as long as I don’t lose any I have one spare at the minute.

Lamp Irons – Milled

Finding myself at the point of fitting lamp irons I was muttering about fold up etched version provided in kits and the fact that I ould buy some cast ones from Laurie Griffin et, al but I only needed 3 of one type and a couple of another. Then I recalled having some milled angle with one leg longer than the other which I had used for replacement step boards on the Slaters LNER brake van. I was sure I had some off cuts but they are stashed somewhere safe so while they resurface I thought about the more conventional type. I had once seen some made by silver soldering a strip at right angles to a another to recreate the shape when sawn of in strips but couldn’t find the page that I had seen it on.

This brought to mind why don’t I mill some. When we moved we had a drawer full of 13 amp plugs that I had removed from appliances before binning them. Knowing that we would never use so many plugs I took them apart and removed the pins (solid brass) for potential future material and binned the rest. Fortunately I knew exactly where they were so I set to this evening and milled one to shape.

Once I had the basic shape I then cut it into strips using a razor saw. Having proved the concept next time I make some I will use a slitting saw. I had thought about using it on these but didn’t think that the milled shape would stand the cutting forces.

DA Princess Milled Lamp irons

David Andrews Princess 4000 Gallon Tender

A couple of bereavements since my last post on this have slowed things down somewhat but I have made a little more progress.

Getting the rear of the tender and the tank top square and straight up has been a bit of a struggle.

David Andrews Tender Rear
David Andrews Tender Rear
David Andrews Tender Rear

This has mainly been due to the fact that the rear of the tender is mainly half etched. The half etching process in what is quite thick base material, has made it curl in several planes.

A look at one of the tender sides probably helps to illustrate this better than the photos of the tender rear.

Curl on tender sides do to half etching process

I got there in the end.

David Andrews Tender Rear

David Andrews Princess, Cleaning up the Tender Tank vet castings

Looking to start adding as much as I could details wise, before assembling the main components. I dry fitted the tank filler and the vent pipe castings on the tank top plate. Although the latter are generally not bad castings, when I opened out the etched holes, they both sat lopsided. I attempted to tidy them up using a square needle file but wasn’t able to correct the lean.

David Andrews Princess – Tender vent castings

I decided to have a go at turning them, but gripping them to turn them in the lathe was going to prove interesting. So, I took a leaf out of the late David Smith (DLOS)’s book, and made a split collet from a length of aluminium rod.

I had recently watched a YouTube video of someone doing just that and the guy who made the video had left a collar on his split collet to make it easier to get it in and out of the lathe collet.

Split Collet
Split Collet

This shot shows how the casting sits in the split collet.

Split Collet with casting in situ

You can see in the shot below how lopsided the base was. The rim of the base plate was so thin that I dare not turn too much off or I would have ended up having to turn a collar to replace it. Which was plan B if I hadn’t been able to get the existing base plate to sit flat

Casting after turning to clean up the base and make it sit flat.

Thankfully I got away with it and didn’t need to resort to plan B.

David Andrews Princess – Tender vent castings sitting down properly

David Andrews Princess – Princess Marie Louise

Modelling time has been in short spells just recently, hence my lack of posts. I have been beavering away at detailing the front and rear of the tender but I haven’t taken any photos yet. However, a discussion on the Guild forum about details of the coal pusher fitted tenders had me looking closely at the drawings of the modifications done to the 9 Ton tender to increase coal capacity to 10 Tons. There are drawings of the upperworks in LMS Profiles no 4.

The tank vent castings cleaned up quite nicely by spinning them in the mini drill with a bit of scotchbrite and although the water filler was a reasonable casting, when comparing it to the drawing it’s a bit on the undernourished side. So, using the same bar as I used for the eccentrics which was just the right diameter, I decided to make a replacement. I had a look at as many photos as I could find and it seems that David Andrews has the type of hinge mechanism pretty much correct albeit that all the ones that I saw had plain straps without visible fasteners.

Replacement LMS 4000 Gallon Tender water filler
Replacement LMS 4000 Gallon Tender water filler
Replacement LMS 4000 Gallon Tender water filler
Replacement LMS 4000 Gallon Tender water filler

After turning, I transferred it to the mill and used a recently acquired edgefinder (less than £7 posted from Allendale) to help to accurately position the holes. I then used a 1mm collet to hold a .06mm drill and away we went. Fitting such small drill bits into a collet on the mill is a bit of a fiddle and you could really do with another hand but it’s worth it.

Homemade Eccentrics part 2

I went through the process again this time drilling the offset at 2mm which proved to be perfect for this particular application.

I had been using a very thin cutting tool which someone had ground (not very well it turned out) which came in the box of bits with the lathe. After cutting the first one I thought that I would examine the tool to see if I could improve it or at least rub it on a stone to restore the cutting edge. When I looked closely at the cutting part I noticed that the bottom of the tool was wider than the top and although there was some rake away from the cutting edge the fact that it was getting thicker couldn’t be helping to make an efficient cut.
This is a sketch of what the tool looked like originally albeit the bottom of the wedge is somewhat exaggerated.

I have watched a few Youtube videos on sharpening lathe tools recently so I had a go at grinding the tool to take off some of the thickness towards the bottom making the two sides parallel.
This improved the cut and I successfully cut the groove for the first sheave. Then I parted it off but I was a little too close leaving a very thin edge. During the parting off, the parting tool moved slightly in its holder which pushed over the thin rim of the sheave slightly closing the top of the groove.
In the end it was usable but I decided to cut another pair to be on the safe side. It was while parting off the first one that I noted that my parting tool was in fact just the right thickness for cutting the groove without having to move the carriage as well as the cross slide to get the desired cut.
Having discovered this the next one progressed much faster and modifying the fixture that holds the parting tool so that it grips the parting tool more securely by squeezing it in the vice made the third one even faster still. The parting tool is one like this albeit mine only has one tool. You will note that it’s a pressed steel fitting that grips the part with the aid of a cap screw. Mine didn’t hold the cutting tool very closely to the holder but it does now.

So here we have the finished sheaves.

DA Princess Homemade Eccentrics
DA Princess Homemade Eccentrics

This is how they will fit on the axle once I work out their alignment with the crossheads further down the line.

DA Princess Homemade Eccentrics test fitted to the axle.

It turns out that I wasn’t far out with my 16mm deep offset hole, I had a measure of the remaining stock while putting this post together, and there is just about enough material to cut a 4th sheave had I needed a full set for a conventional inside motion build.

Homemade Eccentric Sheaves

Although these parts are allied to the Princess build, I thought that I would add the making of them and the reasoning behind it as a separate post just in case anyone has need to solve a similar problem in the future.

Readers of the David Andrews Princess thread will have noted that I had to make the brake gear removable to ensure that I could remove the wheels due to them being mounted on telescopic axles. This need stems from a similar issue but I will start at the beginning.

Although the gent that I am building it for doesn’t want full inside motion. One thing that is quite visible through holes in the front frames, is movement of the crossheads. I was asked if I could add some element of movement using the spare outside motion bits from the kit ( a set of Premier rods etc. has been supplied for the build). Having started to think about it long before getting to the actual start of the build I realised that with the axles being hollow I couldn’t use traditional cranks to make the crossheads move (or rather I wasn’t comfortable that I could make it work without ruining axles wheels). So I thought that a pair of eccentrics would impart movement while being able to be attached to the hollow axles without having to cut them.

Driving wheel with hollow axle

We agreed this as the way forward and I ultimately bought castings for the slide bars/crossheads and eccentric straps from Laurie Griffin. I was also going to buy some eccentric sheaves too until I recalled Nick Dunhill finding the new cast versions very time consuming to prepare. Further thought made me also realise that the LG cast ones wouldn’t really work anyway. This is because in a ‘normal’ inside motion set up the eccentric sheaves are trapped between the cranks so the eccentric straps cannot slip off the edge of the sheaves. Of course, I planned to use them as a single eccentric so they would need to be restrained at either side.

Instead of ordering a set of cast eccentrics along with the other parts, I bought a length of 12mm round brass bar instead.

Initially I was going to offset in the lathe using a four jaw chuck to offset the bar but having done a bit of research online, most machinists were of the view that you could but if you had a mill it would be far easier to drill it in the mill. Not being as proficient with my mill as I hope to be in time I did use the lathe to put a small centre mark in the end of the bar before transferring it to the vice in the mill.

Then using a centre drill inserted into my centre mark to centre it quickly, it was easy to plot the offset (2.4mm, more on this later) and then drill it out to 4.5mm. I then took it to final size with a reamer.

Transferring it back to the lathe I took a skim off the outside and marked up for the first sheave. Some time later we had this.

Home made eccentric sheaves first attempt
Home made eccentric sheaves first attempt
Home made eccentric sheaves first attempt

I tried the eccentric strap for size and found it was just a little too wide for the strap to close completely around the sheave.

Home made eccentric sheaves first attempt – test fitting the strap

It was at this point that I noticed that the depth of cut of the groove to accommodate the strap was such that it was very close to breaking through into the offset hole. It seems that in setting my offset hole at 2.4mm from the centre to gain the maximum amount of movement was just too much.

You may be able to see the mark where it’s just about to break through in the image below. This was made worse by having to apply a second slightly larger reamer than 3/16 (4.74mm) to get the axle end into the offset hole

Home made eccentric sheaves first attempt – offset too great, turning breaking through.
Axle test fit in sheave.

The plan is to start again from the other end with a 2mm offset hole and see how I get on.

To be continued…

David Andrews Princess Tender Body

Further progress on the tender has seen the basics of the body put together.

DA Princess Tender Body
DA Princess Tender Body

So far, the only issues have been some bowing of the half-etched sheets which has taken a bit of work to get them soldered up straight. The worst being the rear sheets with the steps and the coal door.

DA Princess Tender Coal Doors

In the end I added a second sheet of 10thou nickel to back off the coal door.

DA Princess Tender basic Front
DA Princess Tender Rear of front plates.

I still have more detail to add to the coal door.

DA Princess Tender Body Just resting in place

David Andrews Princess Tender chassis – Brakes fitted

With the brake hanger height sorted it was time to fit them. Because the wheels are on telescopic axles, they need much more wiggle room to be removable than the Slaters et al, types. It’s actually quite surprising how little room you need to remove a Slaters wheel.

The lack of space around the brakes meant that for the wheels to be removable the brakes need to be removable too. I did this by adding a collar from microbore tube over the .9mm rods that the brakes hang from on the frames. And at the moment the cross shaft at the front of the tender is removable but I am sure that if this were fixed the brakes would pivot out of the way to get the wheels out.

DA Stanier 4000 Gallon Tender inner Chassis – brake support sleeves
DA Stanier 4000 Gallon Tender inner Chassis
DA Stanier 4000 Gallon Tender inner Chassis

Just to prove that they are removable.

DA Stanier 4000 Gallon Tender brakes

I also made the two quite hefty support rods for the water scoop.

DA Stanier 4000 Gallon Tender water scoop detail

Plus, a Blue Peter moment in that here’s one I did earlier. I fitted the brake cylinder that I turned when I first got the Unimat 3.

DA Stanier 4000 Gallon Tender brake cyinder

A few general shots of the inner chassis, for no other reason than I got a bit carried away with the camera.

DA Stanier 4000 Gallon Tender Water scoop details
DA Stanier 4000 Gallon Tender inner Chassis – brakes removed
DA Stanier 4000 Gallon Tender water scoop detail
DA Stanier 4000 Gallon Tender water scoop detail

David Andrews Princess – A comparison of tender brakes

The next interesting bit of the build was when I came to look at fitting the brakes. The kit provides etched brakes for the tender in the usual dual layer fashion. I had some nice casting from the Hobby Horse Reynolds range. They were the ones that I was drilling out when I showed my use of pliers to clamp them for drilling a short while ago.
When I put some rods through the chassis in the holes provided and dry fitted the Reynolds castings to the stretchers and pull rod frame they wouldn’t fit because they were not long enough. After a bit of head scratching I checked the drawing and sure enough they are to scale length. However when I checked them again the etched ones provided it all made sense.

David Andrews Princess Tender Brakes comparison

The answer to this little dilemma was to re-drill the holes in the frames 1mm lower down. There was just enough frame depth to do this without having to resort to adding hanger brackets.

DA Princess Tender chassis

When I started on the brake pull rods and fitting the water scoop, I quickly realised that the kit is very lacking in detail underneath the tender.

After being kindly supplied a drawing that showed the detail of the inner frames of the tender, I started to add some additional details. My spares box yielded a couple of balance weights which I added to the linkages supplied in the kit. Not perfect but better than nothing. This is still a work in progress.

LMS Princess Water scoop gear
LMS Princess Water scoop gear
LMS Princess Water scoop gear

As you can see from the photos it does all move at the minute but I may need to solder it solid depending on how far I can go with the remaining linkages and how controllable they are.

I also started work on the brake linkages adding a bit of 3D detail to the joints using scrap etch and brass rod.

LMS Tender Brake Pull Rods
LMS Tender Brake Pull Rods
LMS Tender Brake Pull Rods

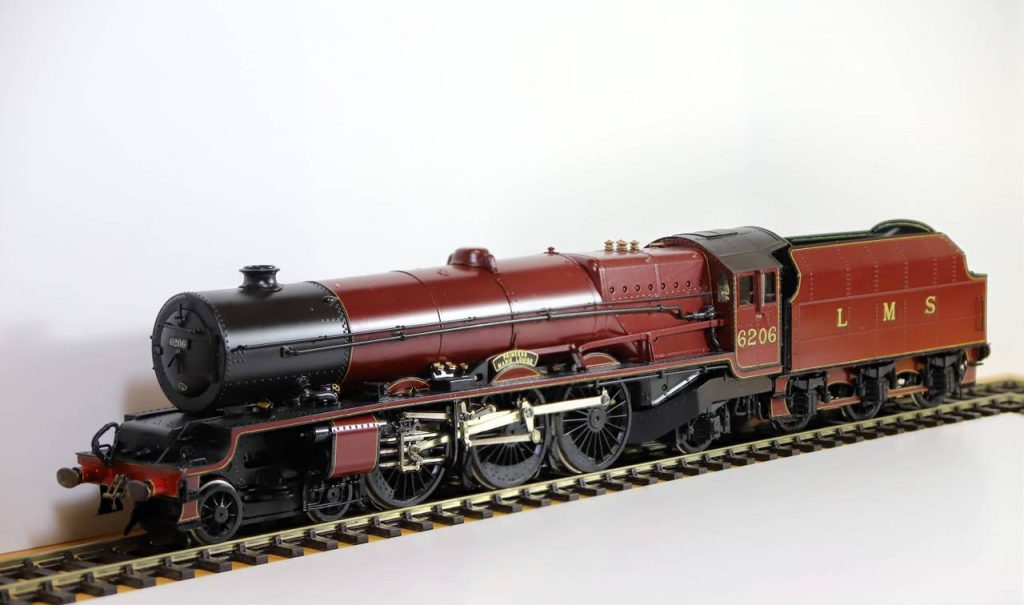

David Andrew Princess Princess Marie Louise 6206

It’s time for another weekend project to break cover. Another of my outstanding jobs is the build of a David Andrews LMS Princess Pacific kit. The Loco is to be 6206 Princess Marie Louise depicted in the late 1930’s.
I was pleasantly surprised upon examining the box contents, that the gent that I am building it for had ordered all nickel etches.
6206 was slightly unusual in that for much of her life she was attached to a tender equipped with a coal pusher. The additional parts for this have been supplied by Finney7 from their Duchess tender.
The box also contains a lot of additional extra castings to upgrade the kit parts.

DA Princess Tender Chassis
DA Princess Tender Chassis

The wheels are Alan Harris castings turned by the gent that I am building it for.
