Still flitting between the 8F and the N10 and managing to make good (for me) progress on both.

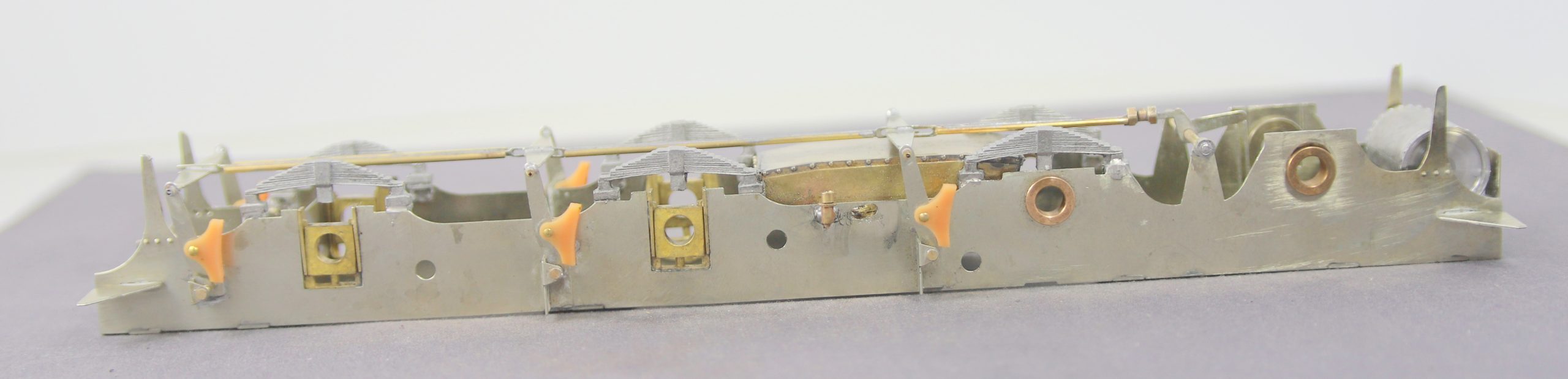

On the N10 I was able to get the brakes fitted – I did cut the brass shoes off and fit some 3D printed shoes that I had drawn up and a friend printed for me.

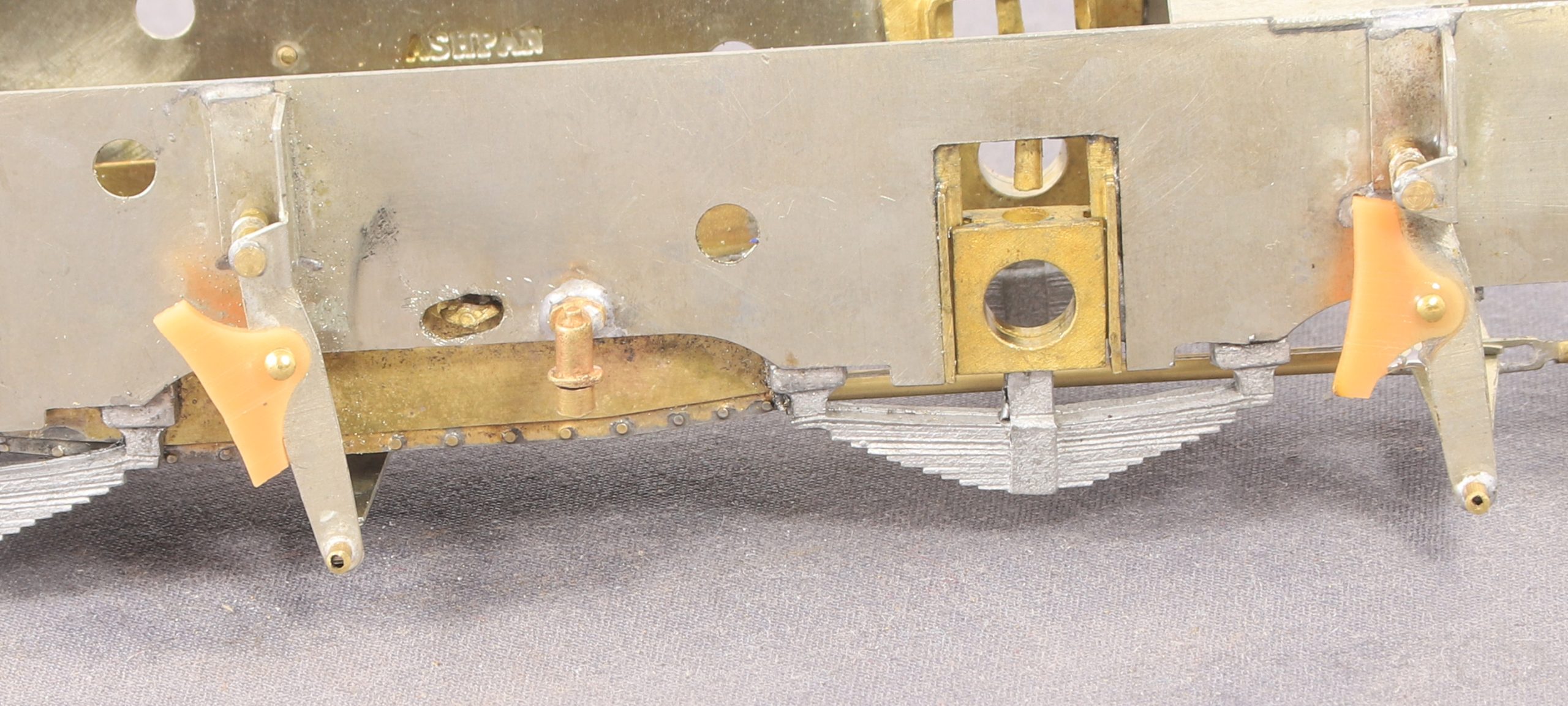

On the image of LNER no 1138 which is my chosen loco I noted that there is a tap and a clamp at the side of the ashpan.

You may think that I have made a bit f a mess of cutting out the hole for the clamp but although I have seen some photos with overlapping round holes in the frames for the clamp, on 1138 it looks to have been crudely cut out with a gas axe.

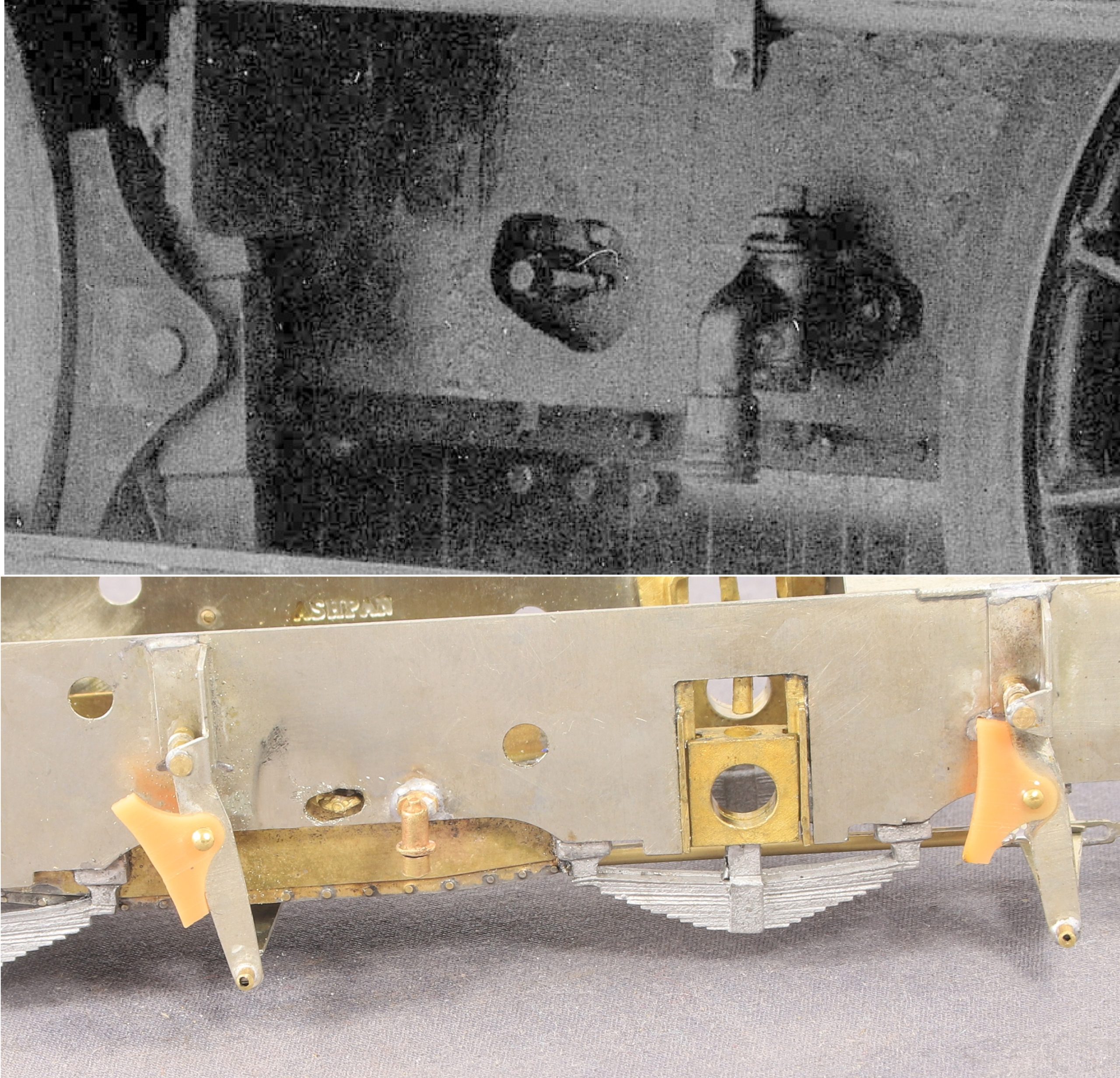

As you can see from the comparison so I was able to get away with not managing to cut out round holes so easily.

Both the clamp and the tap could really do to have been a little higher up the frames but due to the way that Jim has designed the ashpan mountings it was difficult to make the holes higher up so I’m working on something even if a little low is better than nothing.

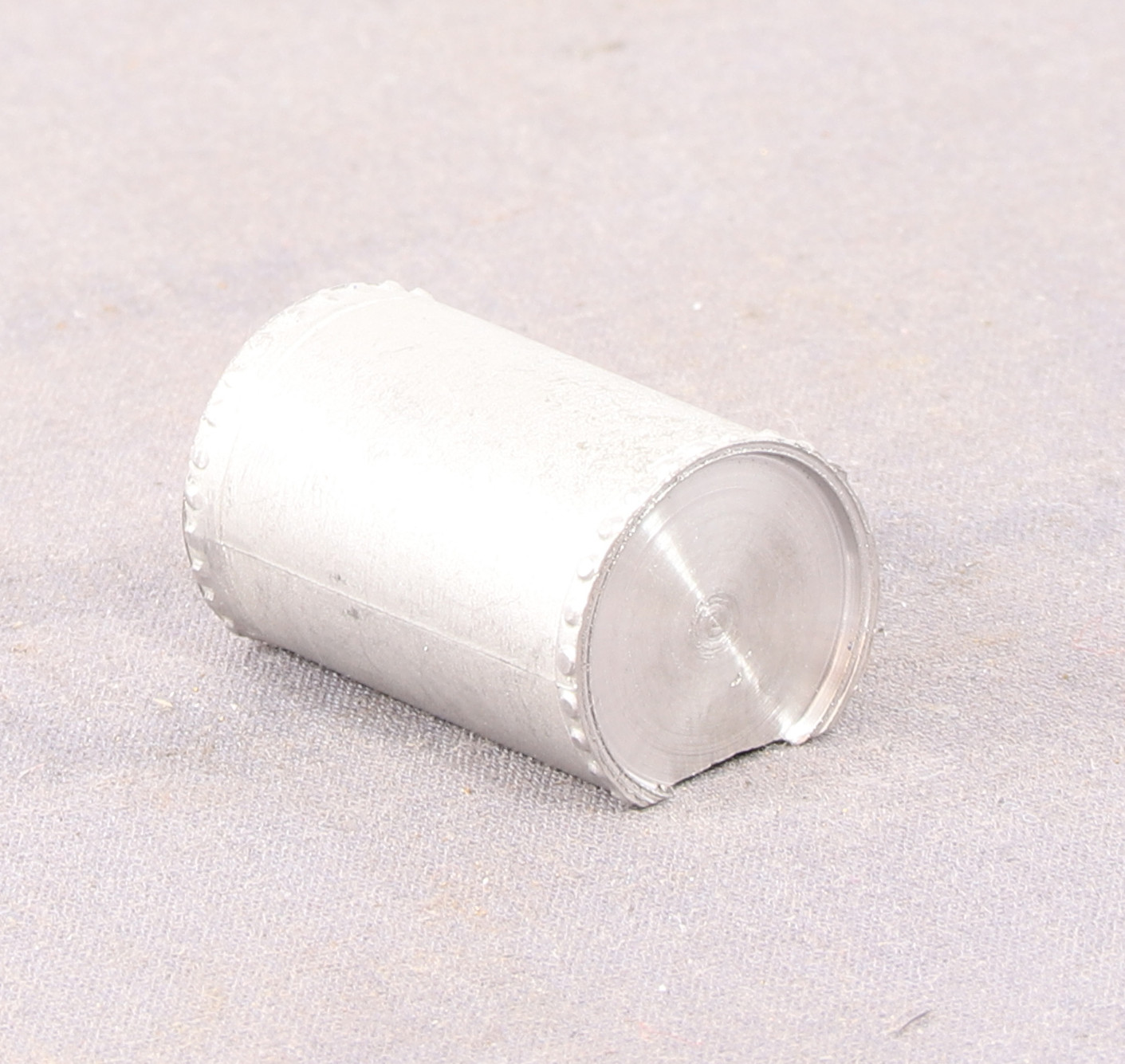

I also popped the air tank in the lathe and cleaned up the ends. To prevent the cast rivets from being damaged I wrapped the casting in a strip of aluminium sheet recovered from empty shaving foam cans. This is a bit thicker than the aluminium recovered from drinks cans so does a bit better job of protection. A note of caution. I also use antiperspirant* which comes in exactly the same cans but is much higher pressure so I don’t tend to use them for recycling.
